Acta-Back® Deep

HCPCS Coding: E2615/E2616

  • Acta-Back Deep wings are width & angle adjustable up to 2".
  • Deepback wings have a thin profile for greater range of motion
  • Patented moldable aluminum stays conform and support back.
  • Provides pelvic and scapular relief.
  • Available in 12"-22" heights and 12"-24" widths.
  • Patented Compass Hardware quickly installs to wheelchair and easily adjusts for depth, height, and angle while the user remains seated.
  • Lightweight durable aluminum shell comes with head support holes.
  • Three layer foam construction including Visco Surface.
  • Available with two fabric options: Comfort-Tek and Stretch-Air.
Configure & Add to Cart
Acta-Back Deep
Front View
Front View

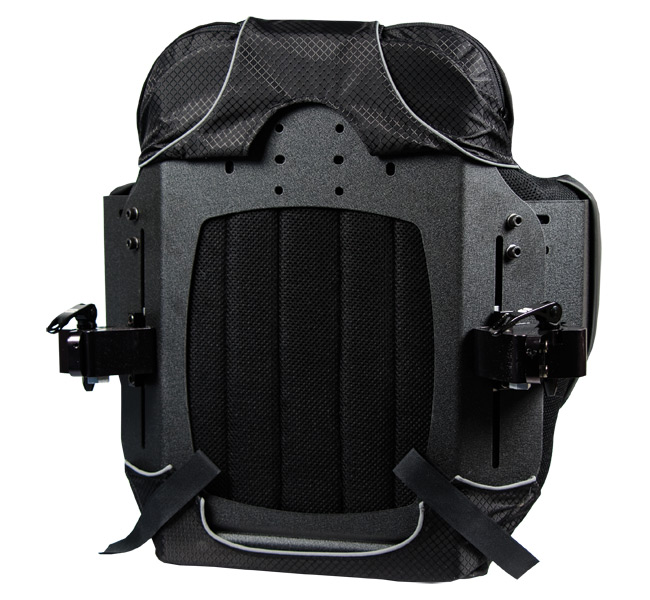

Shell View
Shell View
overlay
Compass Hardware Installation
Compass Hardware Installation
  • Patented moldable aluminum stays conform and support the user’s back.
  • Complete with patented Compass® or Power Mount Hardware.
  • Durable aluminum shell comes with head support holes.
  • Three layer foam construction, including comfortable Visco surface layer.
  • BodiLink™ Head Support (E0955) and Hardware (E1028) are optional and available.
  • Acta-Back® Deep wings are angle and width adjustable up to 2” featuring a thin profile for greater range of motion. Wings are not height adjustable.

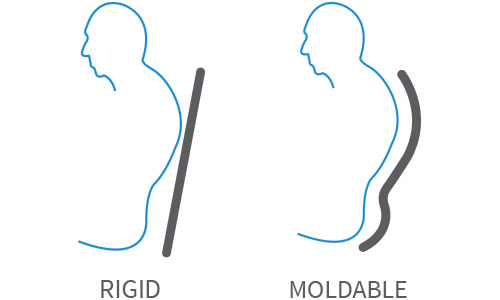

Moldable Support

OPTIONAL ACCESSORIES

HEADREST

Ordered separately.
  • Fully adjustable headrest provides height, tilt, and angle positioning.
  • Positive lock mechanism assures secure positioning and allows for removal of unit within seconds.

COMPASS 4 HARDWARE

  • Fully adjustable for height, depth, and angle of recline.
  • Requires only 1.5" of space on each cane for mounting purposes.
  • All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
  • Quick-release feature allows backrest to be removed vertically within seconds.
  • Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
  • Positive locking feature for angle rotation.
Compass HardwareNote: hardware appearance my vary depending on back support size and style.
Compass Hardware

4 POINT

  • 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
  • 2. Slot lock nut system prevents unwanted rotation.
  • 3. Single design allows for easy adjustment with minimal fasteners.
  • 4. Single slot design uses very little space, allowing other hardware to mount.
  • 5. Minimal fasteners, but strong design.
  • 6. Track systems prevent rotation, allowing features to nest together for additional stability.
  • 7. Combination of aluminum and steel for ultralight hardware.

COMPASS POWER MOUNT BRACKET

Easy Installation
8" height adjustability while user is in chair
Integrates every Acta-Series back support with the following power provider:
  • Quantum with TRU-Balance 3 Power Seating System
    (PMB-QUANTUM)
  • Permobil with Corpus 3G Power Seating System
    (PMB-PERMOBIL)
  • Quickie with 3.7 Power Seating System
    (PMB-QUICKIE)
  • Rovi with Motion Concepts Power Seating System
    (PMB-ROVI)

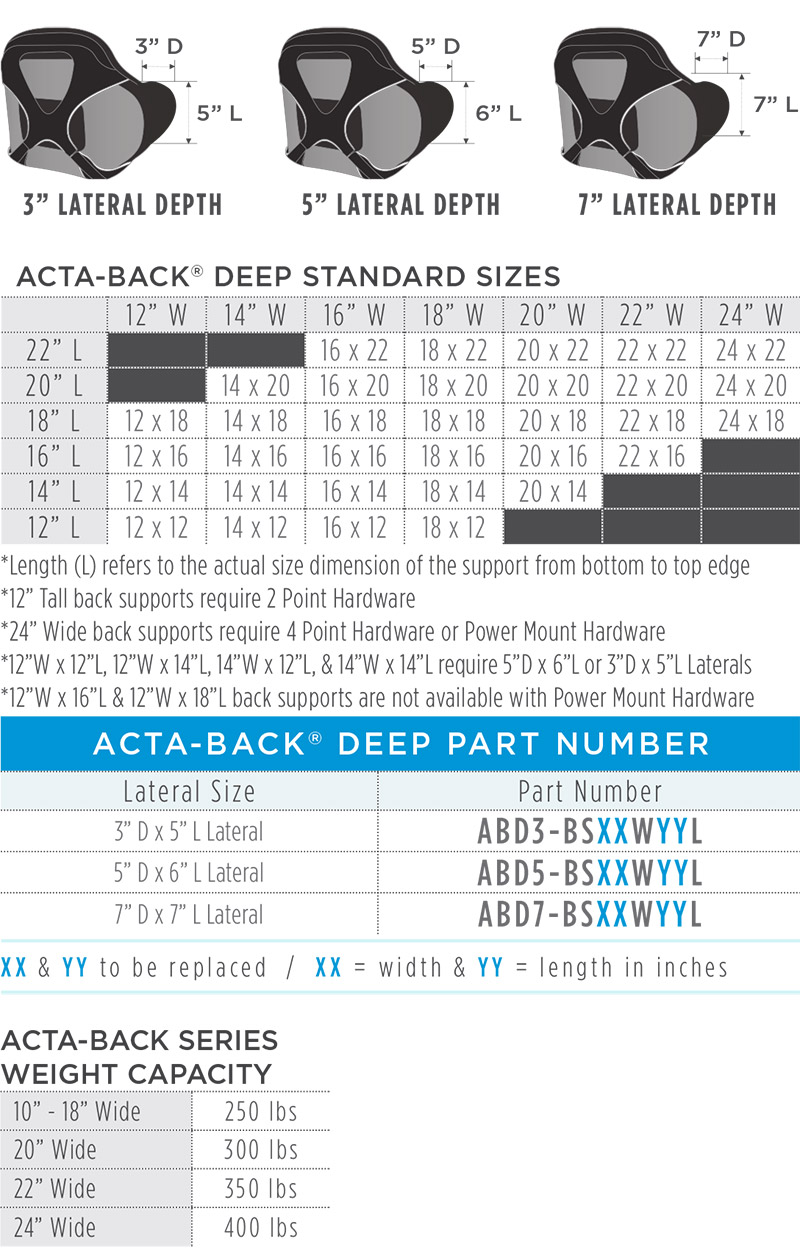

Acta-Back Deep Lateral DimensionsActa-Back Deep Dimensions

Submit Your Review

We'd love to hear your feedback!
This product may be covered by one or more patents or pending patent applications. See www.comfortcompany.com/ip.
