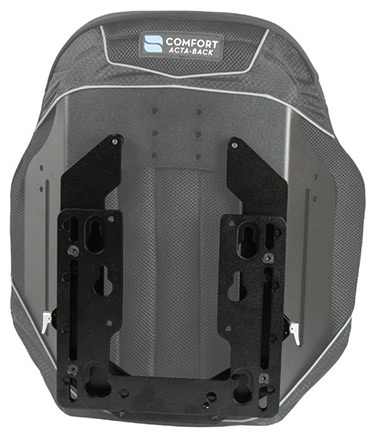

Compass Power Mount Bracket
The all new Compass® Power Mount Bracket integrates every Acta Series back support with the following power wheelchair seating systems:

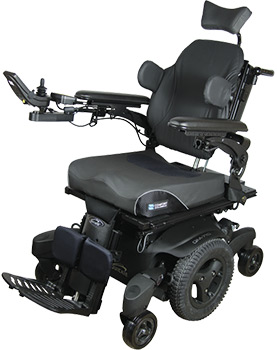

Quickie® with 3.7 Power Seating System
(PMB-QUICKIE)

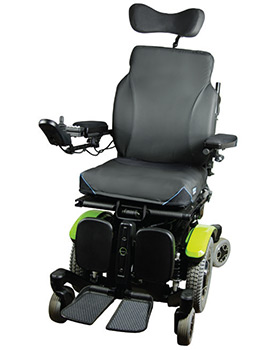

Rovi® with Motion Concepts Power Seating System
(PMB-ROVI)

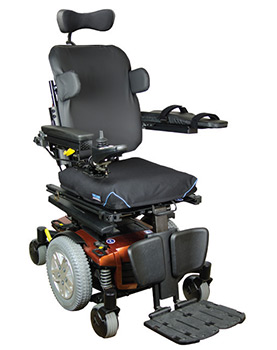

Quantum® with TRU-Balance® 3 Power Seating System
(PMB-QUANTUM)

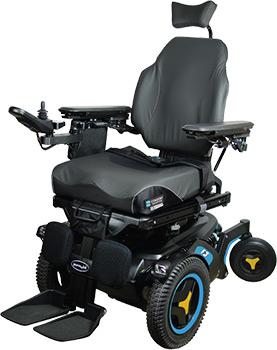

Permobil with Corpus 3G Power Seating System
(PMB-PERMOBIL)

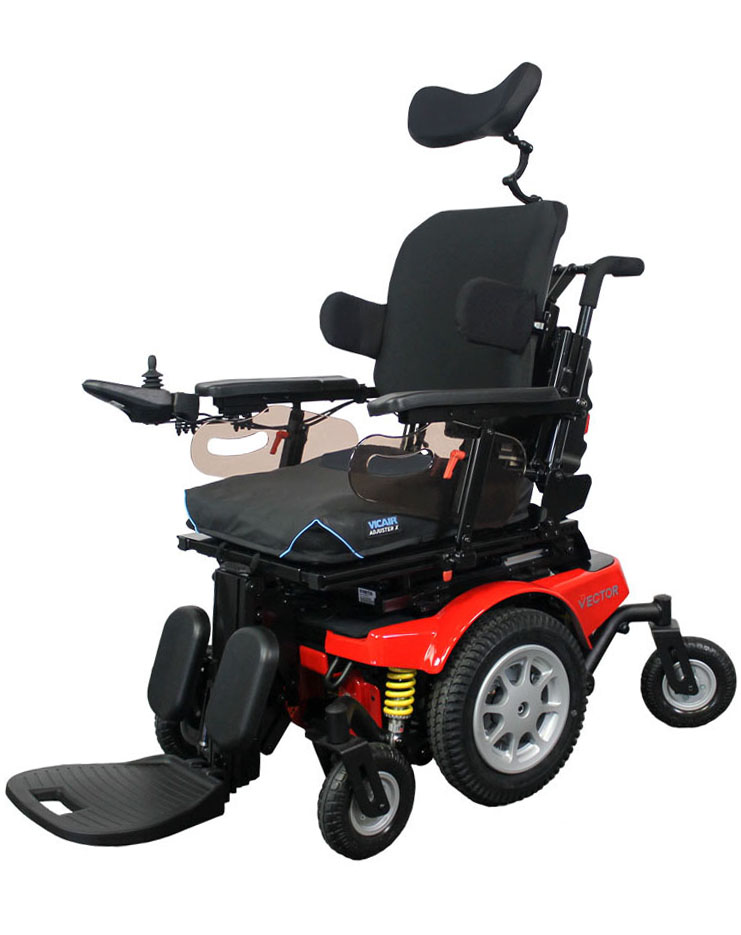

Avid Rehab with Power Tile and Recline
(PMB-AVID)COMPASS® POWER MOUNT BRACKET FEATURES
Easy Installation
8" height adjustability while user is in chair
Mounting bracket is affixed to the power chair with minimal effort.
Release levers allow 8” of height adjustment and easy installation and removal of the back support.
Dove tail height adjustable tracks allows for the user to remain seated during fitting process.
WC-20 and ISO 16840-4 crash test approved
INDUSTRY WEIGHT COMPARISON
The Compass® Power Mount Bracket adds no more than 1 lb to the existing seating system.
- Quantum with TB3, 18" W Standard Back : 11.00 lb
- Permobil with Corpus 3G, 18" W Standard Back : 15.25 lb
- Quickie with 3.7 Power Recline, 18" W Standard Back : 5.5 lb
- Rovi with Motion Concepts, 18" W Standard Back : 8.50 lb
- Compass® Power Mount Bracket, 18" W Acta-Back® : 6.00 lb
- Compass® Power Mount Bracket, 18" W Acta-EmbraceTM : 7.50 lb
- Compass® Power Mount Bracket, 18" W Acta-ReliefTM : 7.25 lb
POWER MOUNT DEPTH GUIDE
| Seat Depth Used 1.5" | Seat Depth Used 2"-4" (1" once user is immersed into shell) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|  |
|  | ||||||||
COMPASS® POWER MOUNT BRACKET ATTACHMENT POINTS
